Embedded socket box

2021-03-03 808

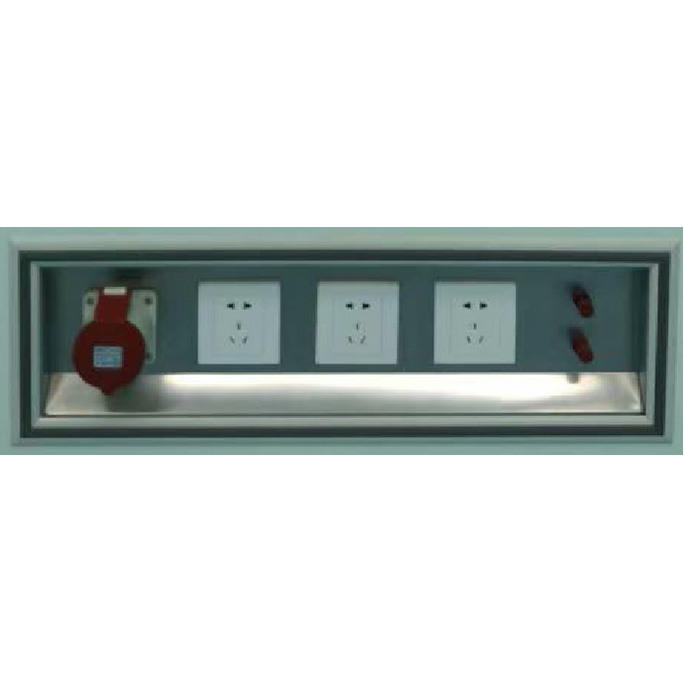

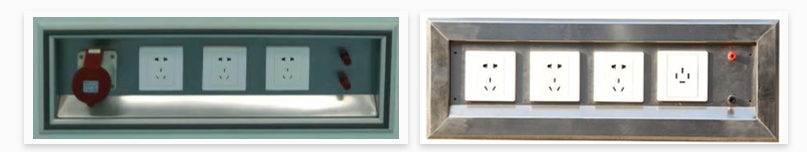

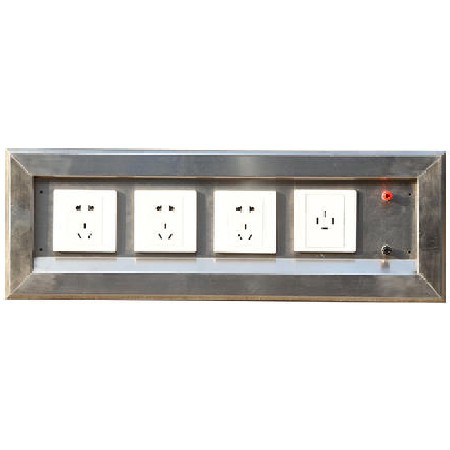

  The power socket box is an integral power distribution device designed for the power demand of clean operating room. It is embedded in the wall, which not only saves space and disorderly wiring, but also is easy to clean. Kangsheng socket box has the following features:

  1. The socket box is made of cold-rolled plate, dusting and rust prevention, stainless steel panel, aluminum alloy edging decoration, beautiful appearance;

  2. According to the use requirements, the socket can be three-phase socket, single-phase socket and grounding terminal interface, and 4-6-position socket can be designed, which is easy to clean;

Product number

Product name

Dimensions

to configure

Opening size

GH09-001A

4-position socket box type A

691*221*70

Three 220 V sockets + 1 grounding terminal

680*210

GH09-001B

Socket type B

691*221*70

Two 220 V sockets + 1 380V socket + 1 grounding terminal

680*210

GH09-002A

5-position socket box type A

816*221*70

Three 220 V sockets + 2 grounding terminals

805*210

GH09-002B

5-position socket box type B

816*221*70

Two 220 V sockets + 1 380V socket + 2 grounding terminals

805*210

GH09-003A

6-position socket box type A

941*221*70

Four 220 V sockets + 2 grounding terminals

930*210

GH09-003B

6-position socket box type B

941*221*70

Three 220 V sockets + 1 380V socket + 2 grounding terminals

930*210
